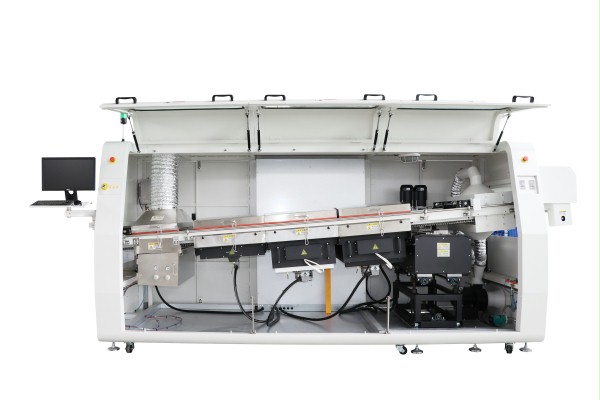

Cetus 450无铅波峰焊机
| Machine Configuration机器配置 | ||
| Cetus450 Wave Soldering System [Cetus450 波峰焊接机] | ||
| 3 preheating /2 wave 3预热区/2波峰 | ||
| Specification 规格: | ||
| Preheating Heating length: 1800mm bottom 3 heating | 预热区总长：3030mm，底部3段预热 | |
| Tin Furnace Capacity:460Kg | 锡炉容量:460Kg | |
|
Load-bearing Double Finger PCB-width from 50-450mm, Transport hight: 750mm ± 20mm Flatscreen monitor and signal tower (three coloured) |
承重型双钩钛爪 轨道可调整的宽度范围50-450mm，轨道传输高度750mm ± 20mm LCD显示器及三色信号灯 |
|
| Conveyor System | ||
| Single Lane+Finger | 单导轨+钛爪 | |
| Manual-Width Adjustment | 手动轨道宽度调整 | |
| Inlet PCB Conveyor system | 入口导入缓冲装置 | |
| Cleaning function | 钛爪定时清洗功能 | |
| Cooling System | ||
| Set up for Forced Air Oven | 风冷式冷却区 | |
| External Water Chiller Optional | 外置水冷机可选项 | |
| Flux Spray System | ||
| Stepper Motor Control System | 步进马达驱动装置 | |
| Precision Spray Valve | 精密助焊剂喷雾阀 | |
| Flux Flow Control System | 流量控制系统 | |
| Solering System | ||
| Cast iron Furnace | 铸铁炉胆 | |
| Energy-saving Channel Design | 节能型锡炉通道设计 | |
| Optimized nozzle | 优化喷锡口 | |
| Stand-by operation | 节能运行模式 | |
| Safe & Other Options | ||
| Windows 7 operation system | Windows 操作系统 | |
| EN-CN interface operation software | 软体中英文操作界面 | |
| Inlet Outlet Exhaust Outlet | 进出口的排风口 | |
